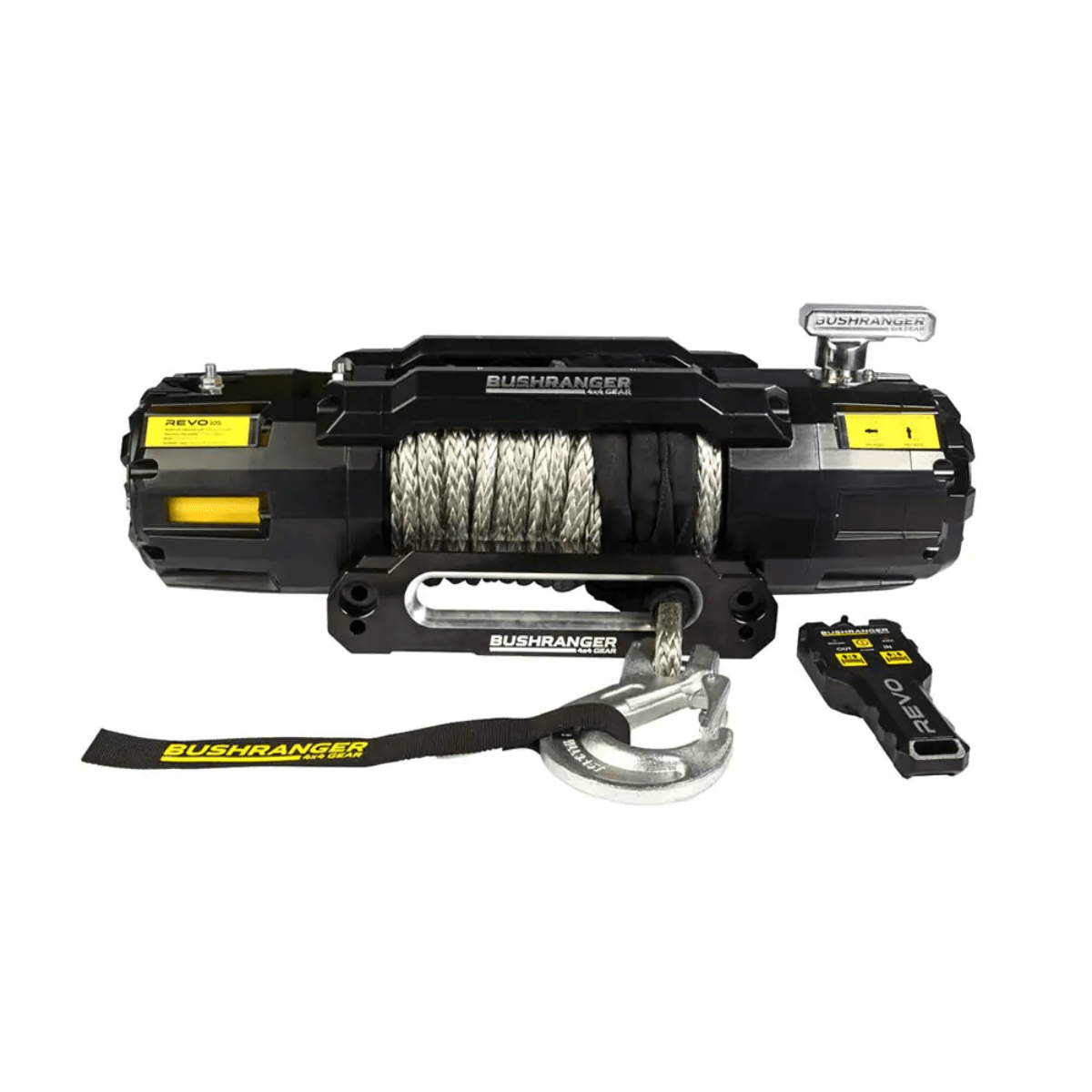

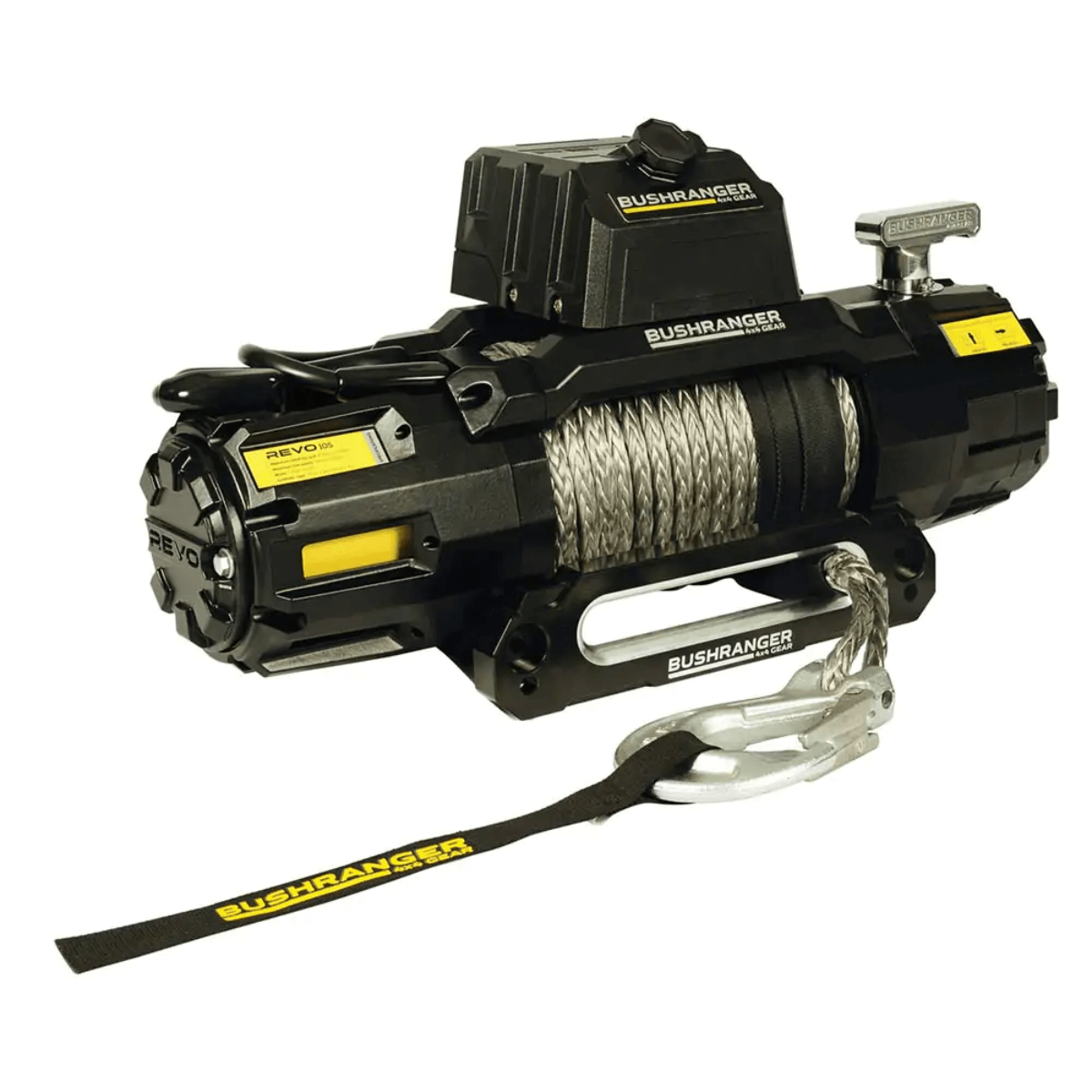

Bushranger Revo Synthetic Winch - 4.5T

Sold out

4,095.00 AED

Tax included Shipping calculated at checkout.

Bushranger | SKU: RWR100S

Bushranger REVO Winch is packed with many features. Including high-quality construction, low current draw, 4 stage oversized gearing with fast line speeds and an advanced proportional friction braking system that will reliably hold 100% of the rated load with no slippage.

The zero drag braking system allows for fast no load line speeds, making unspooling the rope a breeze.

Features

• Premium Motor design | Series wound, 12V, 5.2HP motor made with high-grade materials resulting in a low current draw and longer life at extreme load.
• Clock-able motor housing | four position motor clocking for versatility during fitting
• Multi-mount control box | for easier installation
• No-lift clutch | easy to use spring loaded cam style clutch mechanism
• Tough Design | strong and lightweight aluminium alloy housings with durable black powder coat finish
• Zero brake drag | Zero drag braking system allows for the winch to be powered out under no load without heat build-up, making unspooling a breeze.
• 4 stage oversized gearbox | designed for maximum strength and durability. Extra wide gears improve load distribution resulting in less wear and increased long term reliability. Externally adjustable, 16 position gearbox clocking for ease of fitment and use.
• Gearbox mounted braking system | 100% load holding, proportional friction braking system located inside the gearbox, away from the drum - eliminating heat transfer to synthetic rope.
• Waterproof | Fully sealed motor, gearbox and drum for maximum protection from water, dust and debris.
• Control box | Multiple mounting orientations to suit every installation. Supplied with additional mounting bracket for hassle-free installation.
• 500A Contactor | Heavy duty sealed contractor reliably distributes power with minimal voltage drops.
• In-Line/Off-set Hawse Fairlead | Innovative two position, aircraft grade aluminium design to suit in-line and off-set mounting requirements.
• Synthetic Rope | Premium, 10mm synthetic rope paired with a -¢ÔÇØ removable clevis hook

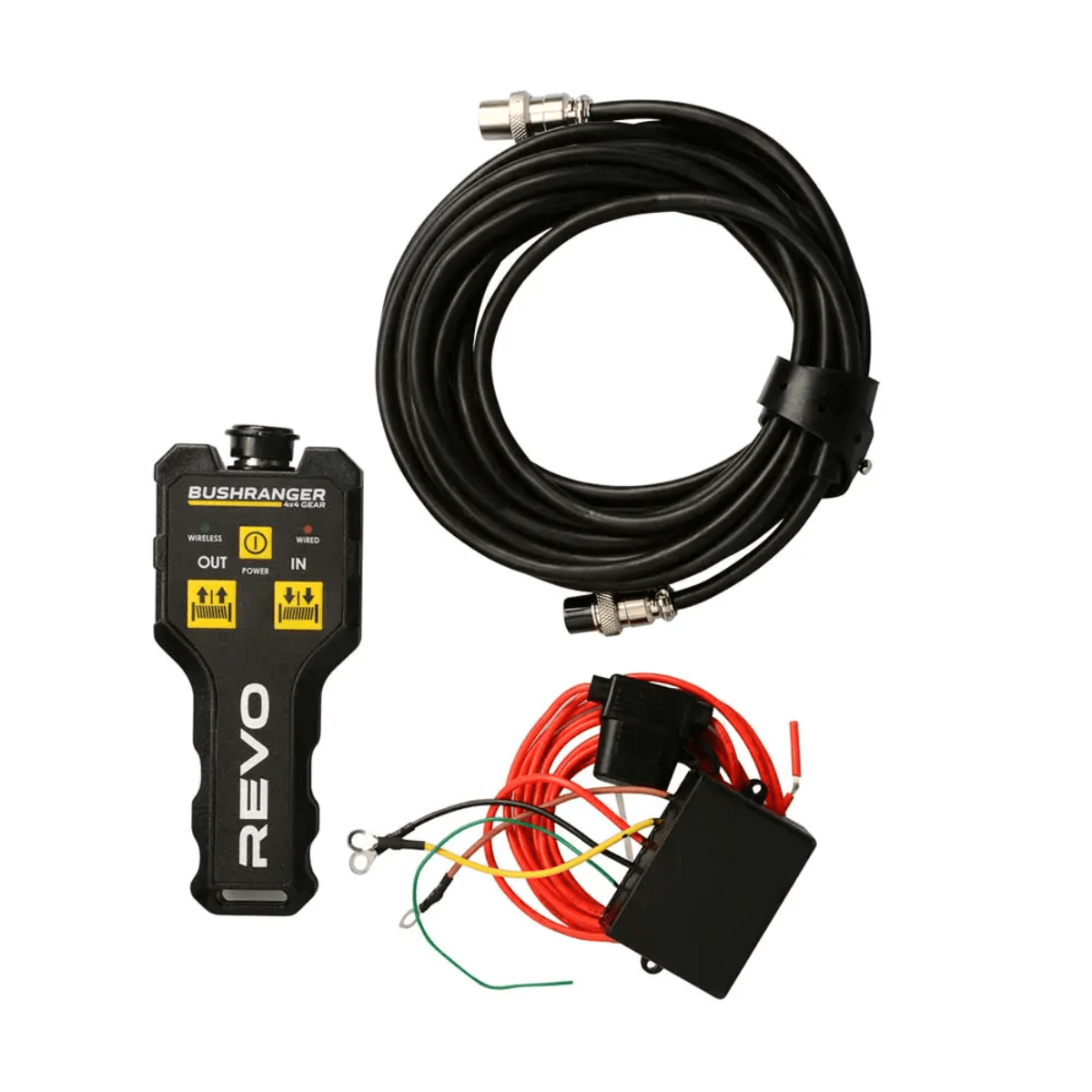

• Wireless Hand Controller | Full sealed, IP67 rated, ergonomic hand controller with long range. Sealed 433MHz wireless receiver mounted internally to control box.
Technical Specification

• Part Number: RWR100S
• Dimensions: 583mm (L) x 165mm (W) x 216mm (H) (excludes control box)
• Rated Line Pull (single): 10,000lbs (4,536kg)
• Motor: Series wound, 12V, 5.2HP (3.9kw)
• Remote Control: Two functions, hand controller (Wireless, 30m range) (Wired, 5m lead)
• Electrical: Contactor IP67 500A
• Gear Train: 4 stage gear driven
• Gear Ratio: 171:1
• Clutch (freespooling): Rotating Ring Gear
• Brake: Gearbox Mounted, Proportional Friction Brake System
• Drum Diameter/Length: 63.5mm x 244mm
• Mounting: Bolt Pattern 254mm x 114mm
• Rope: 10mm x 28m Synthetic Rope
• Fairlead: Two position Aluminium Hawse Fairlead
• Recommend Battery: 650CCA minimum
• Battery Leads: 1850mm
• Finish: Black Powder Coat
• Mechanical Warranty: Limited Lifetime
• Electrical Warranty: 5 years
• Waterproof Rating: IP67
• Certification: CE, IP67
• Winch Weight: 33kg
• Packaged Weight: 37kg
